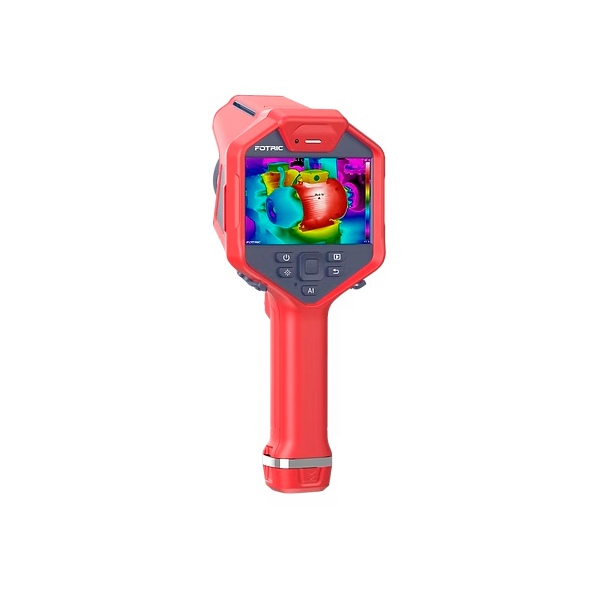

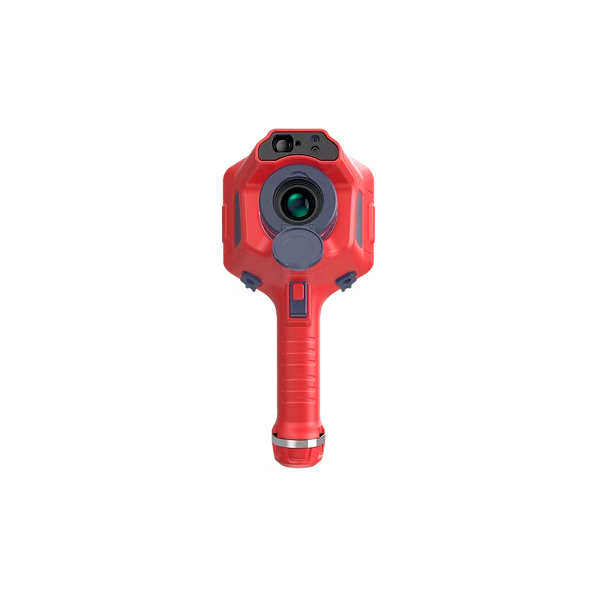

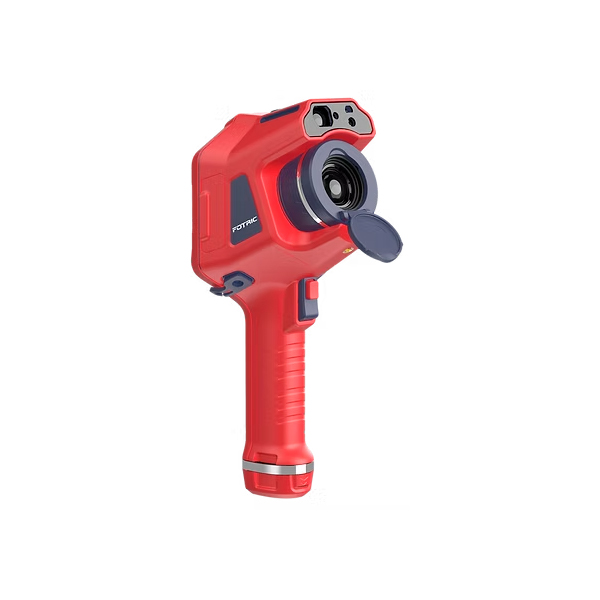

La FOTRIC 345A es una cámara térmica portátil avanzada, diseñada para que los profesionales mejoren la eficacia del mantenimiento en las industrias eléctrica, del petróleo y el gas, y de fabricación. Su resolución térmica de 320×240 y su NETD de 30 mK permiten una visualización superior de las imágenes en pantallas táctiles LCD de 5″. Otras funciones avanzadas, como las opciones de objetivos intercambiables y el potente software de informes AnalyzIR, aumentan el rendimiento operativo, lo que la convierte en una herramienta ideal para inspecciones in situ.
Cámara termográfica Profesional 284×288
Especificaciones técnicas
| Key Features | V5 |
| Infrared Resolution | 384*288 |
| Thermal Sensitivity（NETD) | 30mk(0.03° C)@30° C |
| Temperature Measurement Range | -20 ° C ~ 120° C,
0 ° C ~ 650° C, 300-1550° C |
| User-definable Markers | 16 spot markers; 8 (rectangle or circle); 2 measurement lines |
| Focus Mode | TurboFocus® system for continuous, laser-assisted, thermal contrast AF; Manual focus |
| Field of View（FOV）- Standard Lens | Standard 25° x 19° |
| Interchangable Lens Options | Wide-angle 44° x 34°,
Telephoto 12° x 9°, Ultra Telephoto 7° ×5° |
| Unique Features | NaviPdM®, T-DEF®, IREdge, T-TWB® |
| Frame Rate | 30Hz |
| Accuracy | ± 2℃ or ± 2 %, whichever is greater, (ambient temp at 25℃ ) |
| Storage Card | Micro SD card, 128G, expandable up to 1TB |
| Video Recording | Radiometric thermal video(IRS.) and MP4 video recording (non-radiometric). |
| On-device Analysis | Support (Radiometric Image and Video Data) |
| QR Code Functionality | Support QR code and Barcode scanning |
| Annotation | Support VoiceTextTagFavorite |
| Digital Camera | 13MP industrial grade camera |
| Palettes | 16 standard palettes: Grey, Iron10, Iron, Rainbow, Grey10, GreyRed, MidGrey, Yellow, Rain, Rain10, Blue, GlowBow, Medical, Medical10, MidGreen, Prism. |
| File Formats | Radiometric thermal photo (JPEG.), thermal video (IRS.) and non-radiometric digital camera photo, MP4 video |
| Remote Display | Support Radiometric IR Video Streaming over type-C 3.0 interface; non-radiometric IR video streaming over HDMI interface and IRExplorer ™ |
| Remote Control Operations | Support (through AnalyzIR® and IRExplorer ™ ) |
| Battery | Rechargeable Li-ion, 7.4V, 3500mAh |
| Battery Operating Time | ≥ 4 hours per battery |
| Operation Temperature | -20° C to 50° C |
| Weight (include battery) | ＜ 1.0kg (lens not included) |
| Drop | Engineered to withstand 2 meters (6.5 feet) drop with standard lens |
| Enclosure Rating | IP54, IEC60529:2013 |
| Recommended Calibration Cycle | 2 years |
*Some features might be added or slightly altered according to the region and country
