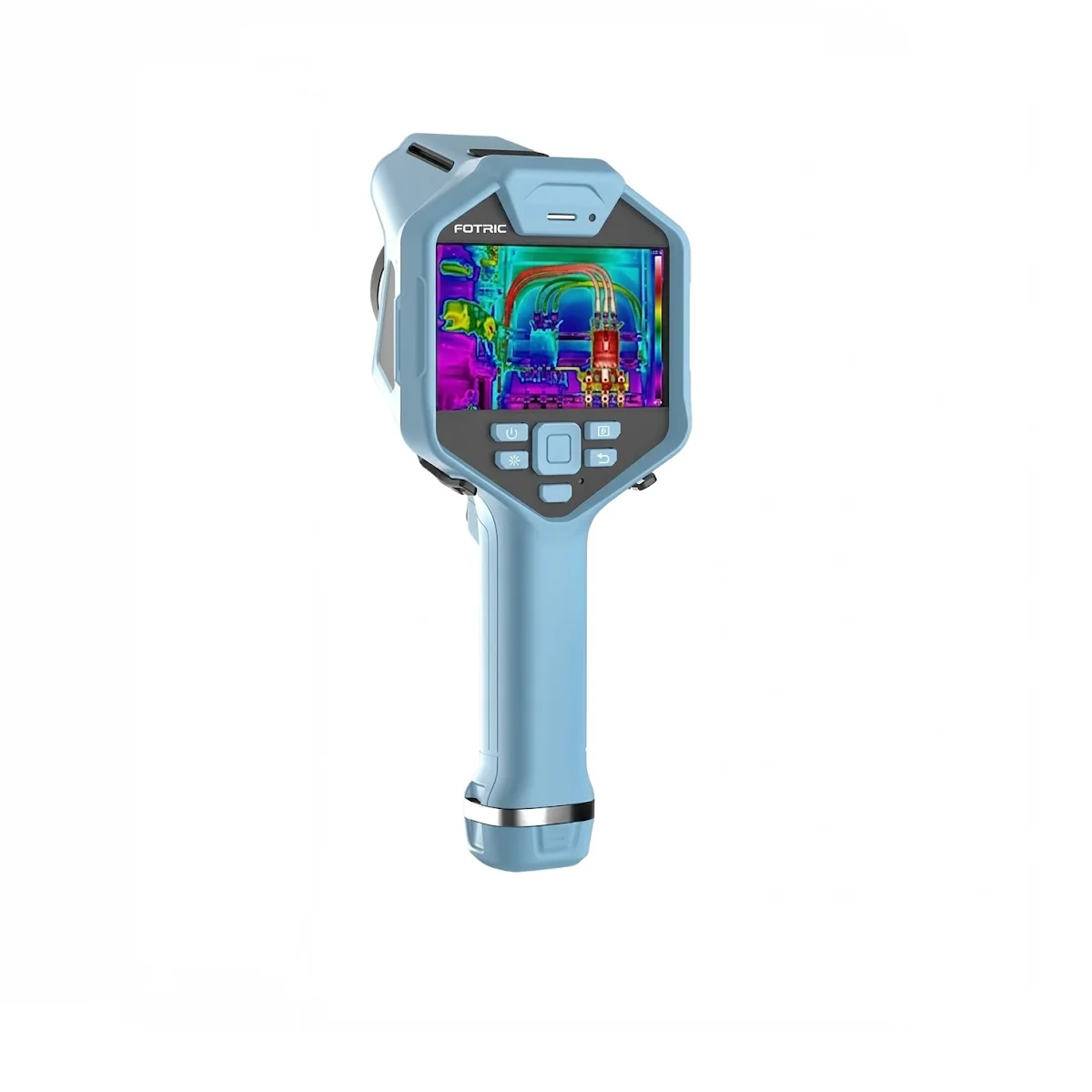

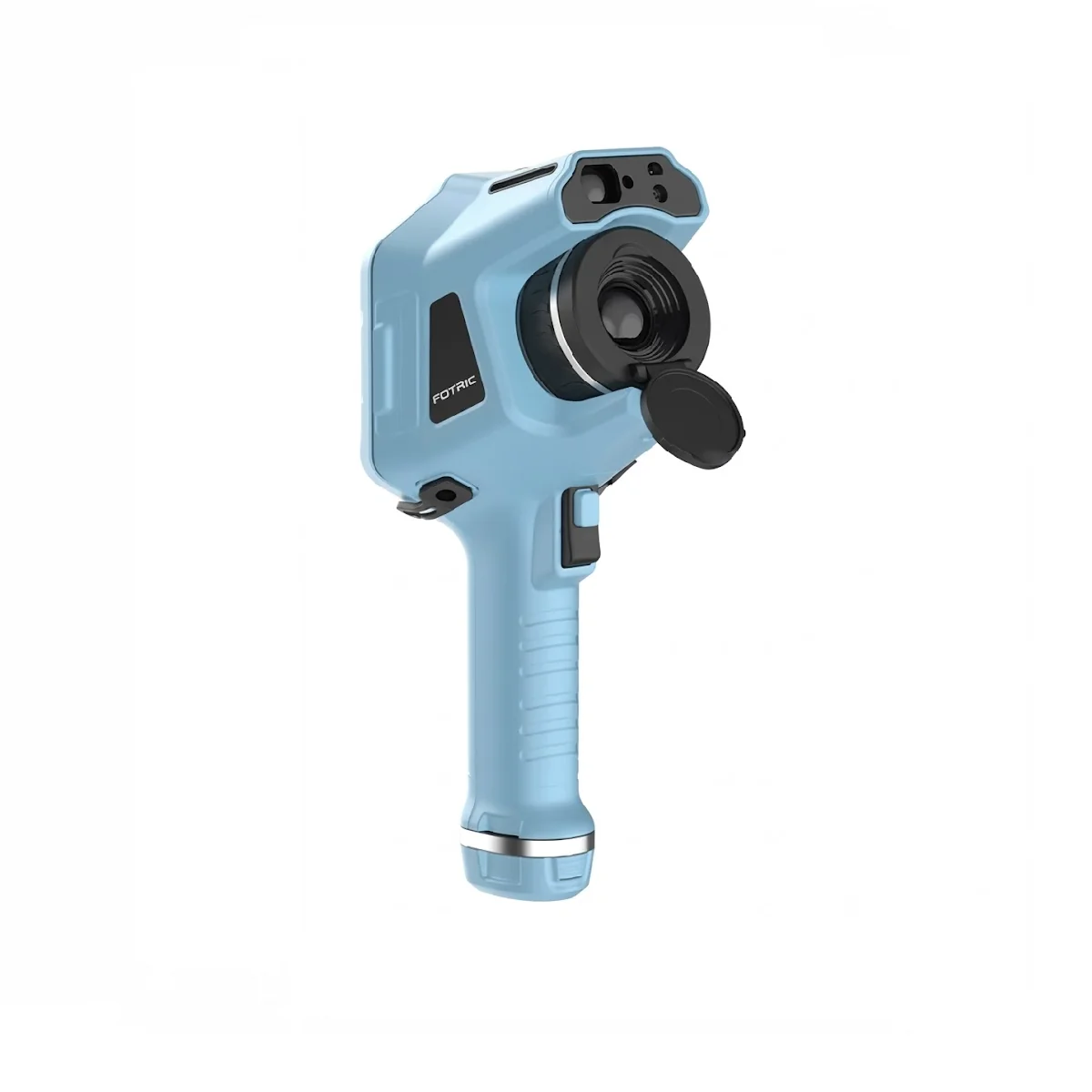

Lleve su termografía al siguiente nivel con la cámara térmica FOTRIC Ti7. Equipada con múltiples modos de enfoque para mediciones ultra precisas, la Ti7 ofrece una resolución IR mejorada de 640×480 y una sensibilidad térmica de <30 mK, lo que proporciona una claridad y un detalle superiores en cada imagen. Su diseño robusto garantiza la fiabilidad en entornos exigentes, mientras que el objetivo gran angular de 44° ofrece flexibilidad para diversas aplicaciones, desde mantenimiento industrial hasta diagnósticos eléctricos avanzados.
Cámara termográfica industrial 640*480
Especificaciones técnicas
| Key Features | Ti7 |
| Infrared Resolution | 640*480 |
| Thermal Sensitivity（NETD) | <30mK@30℃ |
| Temperature Measurement Range | -20~120℃ (-4~248 ℉ )，0~550℃ (32~1022 ℉ )，Intelligent range |
| User-definable Markers | 12 spot markers; 12 (rectangle or circle); 3 measurement lines |
| Focus Mode | TurboFocus® system for continuous, laser-assisted, thermal contrast AF, touch AF; Manual focus |
| Field of View（FOV） | 44° *33° |
| Spatial Resolution (IFOV) | 1.2mrad |
| Unique Features | TurboFocus®, T-DEF®, IREdge, T-TWB® |
| Frame Rate | 30Hz |
| Accuracy | ± 2℃ (3.6 ℉ ) or ± 2 %, whichever is greater（ambient temperature at 15~35° C(59~95 ℉ ) , target object temperature >0° C, calibration at 1 meter) |
| Storage Card | Micro SD card, 64G, expandable up to 1TB |
| PC Software | AnalyzIR® |
| On-device Analysis | Support |
| Image Mode | Thermal image, Digital Camera, Picture in Picture, and T-DEF®, High sensitivity mode (only active when the lens is identified as a gas detection lens) |
| Palettes | 10 |
| Digital Camera | 8MP industrial-grade camera |
| Digital Zoom | 1-10x, continuous |
| Image Format | Radiometric thermal photo (JPEG.), non-radiometric digital camera photo |
| Software and Firmware
Upgrade |
Support OTA remote upgrade and SD card local upgrade |
| LED Flash Lamp | Supports torch illumination and flashlight mode |
| Battery | Rechargeable Li-ion, 7.4V, 3500mAh |
| Battery Operating Time | ≥ 4 hours per battery(depends on the environment and workload) |
| Operation Temperature | -20~50℃ (-4~122 ℉ ) |
| Weight (include battery) | 1.0kg (lens not included) |
| Drop | Engineered to withstand 2 meters (6.5 feet) drop with standard lens |
| Enclosure Rating | IP54(IEC 60529) |
| Recommended Calibration Cycle | 2 years |
